NEW QUESTION # 30
Exhibit.

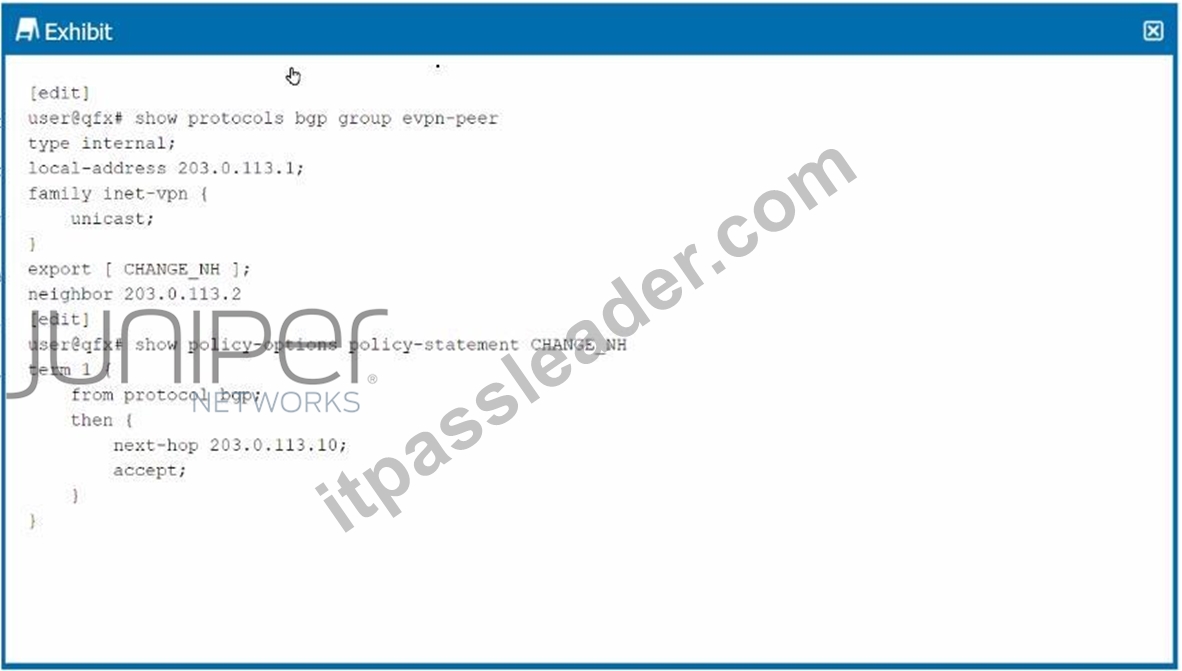

Given the configuration shown in the exhibit, why has the next hop remained the same for the EVPN routes advertised to the peer 203.0.113.2?
- A. The vrf-export parameter must be applied.
- B. The export policy is incorrectly configured.
- C. EVPN routes cannot have the next hop changed.
- D. The vpn-apply-export parameter must be applied to this peer.
Answer: D
Explanation:
* Understanding the Configuration:
* The configuration shown in the exhibit involves an EVPN (Ethernet VPN) setup using BGP as the routing protocol. The export policy named CHANGE_NH is applied to the BGP group evpn- peer, which includes a rule to change the next hop for routes that match the policy.
* Issue with Next Hop Not Changing:
* The policy CHANGE_NH is correctly configured to change the next hop to 203.0.113.10 for the matching routes. However, the next hop remains unchanged when advertising EVPN routes to the peer 203.0.113.2.
* Reason for the Issue:
* In Junos OS, when exporting routes for VPNs (including EVPN), the next-hop change defined in a policy will not take effect unless the vpn-apply-export parameter is used inthe BGP configuration. This parameter ensures that the export policy is applied specifically to VPN routes.
* The vpn-apply-export parameter must be included to apply the next-hop change to EVPN routes.
* Correct Answer Explanation:
* D. The vpn-apply-export parameter must be applied to this peer:This is the correct solution because the next hop in EVPN routes won't be altered without this parameter in the BGP configuration. It instructs the BGP process to apply the export policy to the EVPN routes.
Data Center References:
* This behavior is standard in EVPN deployments with Juniper Networks devices, where the export policies applied to VPN routes require explicit invocation using vpn-apply-export to take effect.
NEW QUESTION # 31
As part of the onboarding process for new switches being added to your data centers, your company uses Juniper Networks' ZTP process. As part of the ZTP process, a script is executed by the devices being onboarded.
Which statement is correct in this scenario?
- A. The Junos ZTP process supports Shell. JScript. and Ansible.
- B. The Junos ZTP process supports Python, SLAX, and Perl.
- C. The Junos ZTP process supports Shell. Python, and SLAX.
- D. The Junos ZTP process supports JScript. Ansible. and Perl.
Answer: C
Explanation:
* Zero Touch Provisioning (ZTP):
* Juniper Networks' ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.
* Supported Scripting Languages:
* The Junos OS supports several scripting languages that can be used during the ZTP process:
* Shellscripts are often used for general automation tasks.
* Pythonis a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.
* SLAX(Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.
Conclusion:
* Option D:Correct-Junos ZTP supports Shell, Python, and SLAX, making it the correct choice among the provided options.
NEW QUESTION # 32
Exhibit.

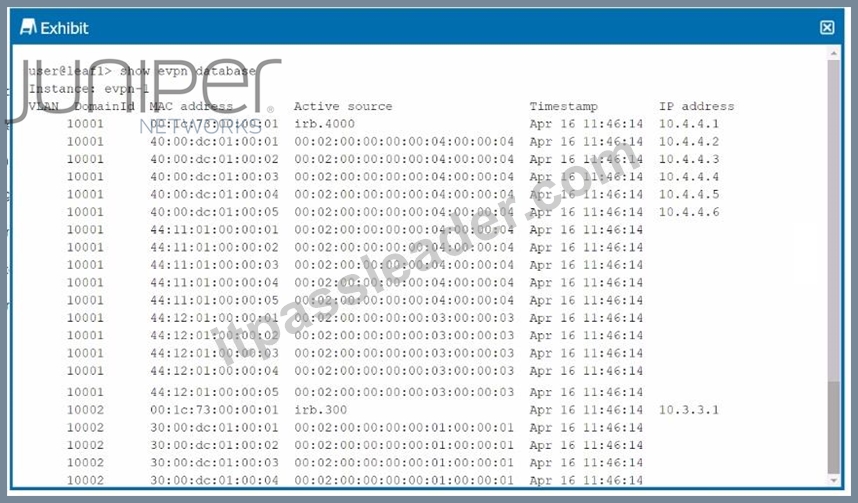

The exhibit shows the truncated output of the show evpn database command.
Given this output, which two statements are correct about the host with MAC address 40:00:dc:01:00:04?
(Choose two.)
- A. The host is originating from an ESI LAG.
- B. The host is originating from irb.300.
- C. The host is located on VN110002.
- D. The host is assigned IP address 10.4.4.5.
Answer: A,D
Explanation:
* Understanding the Output:
* The show evpn database command output shows the MAC address, VLAN, active source, timestamp, and IP address associated with various hosts in the EVPN instance.
* Analysis of the MAC Address:
* Option A:The MAC address 40:00:dc:01:00:04 is associated with the IP address 10.4.4.5, as indicated by the output in the IP address column. This confirms that this host has been assigned the IP 10.4.4.5.
* Option D:The active source for the MAC address 40:00:dc:01:00:04 is listed as 00:02:00:00:00:
04:00:04:00:00:04:00:04, which indicates that the host is connected via an ESI (Ethernet Segment Identifier) LAG (Link Aggregation Group). This setup is typicallyused in multi-homing scenarios to provide redundancy and load balancing across multiple physical links.
Conclusion:
* Option A:Correct-The host with MAC 40:00:dc:01:00:04 is assigned IP 10.4.4.5.
* Option D:Correct-The host is originating from an ESI LAG, as indicated by the active source value.
NEW QUESTION # 33
You are using a single tenant data center with a bridged overlay architecture. In this scenario, how do hosts of the different virtual networks communicate with each other?
- A. off-fabric using an external device
- B. using virtual gateway addresses configured on the spine
- C. using EVPN Type 5 routes
- D. using anycast gateway addresses configured on the leaf devices
Answer: A
Explanation:
* Understanding Bridged Overlay Architecture:
* In a single-tenant data center using a bridged overlay architecture, virtual networks (VLANs) are typically isolated within the fabric, with traffic between these VLANs handled outside the fabric.
* Communication Between Different Virtual Networks:
* A. off-fabric using an external device:This is correct. In many bridged overlay architectures, communication between different virtual networks is handled off-fabric, often using an external router or firewall that connects the different VLANs. The fabric itself primarily provides Layer 2 connectivity within each VLAN, leaving inter-VLAN routing to be handled externally.
Data Center References:
* This design is common in smaller or simpler data center environments where a single tenant does not require complex on-fabric routing and prefers to handle inter-VLAN routing through dedicated devices.
NEW QUESTION # 34
Exhibit.

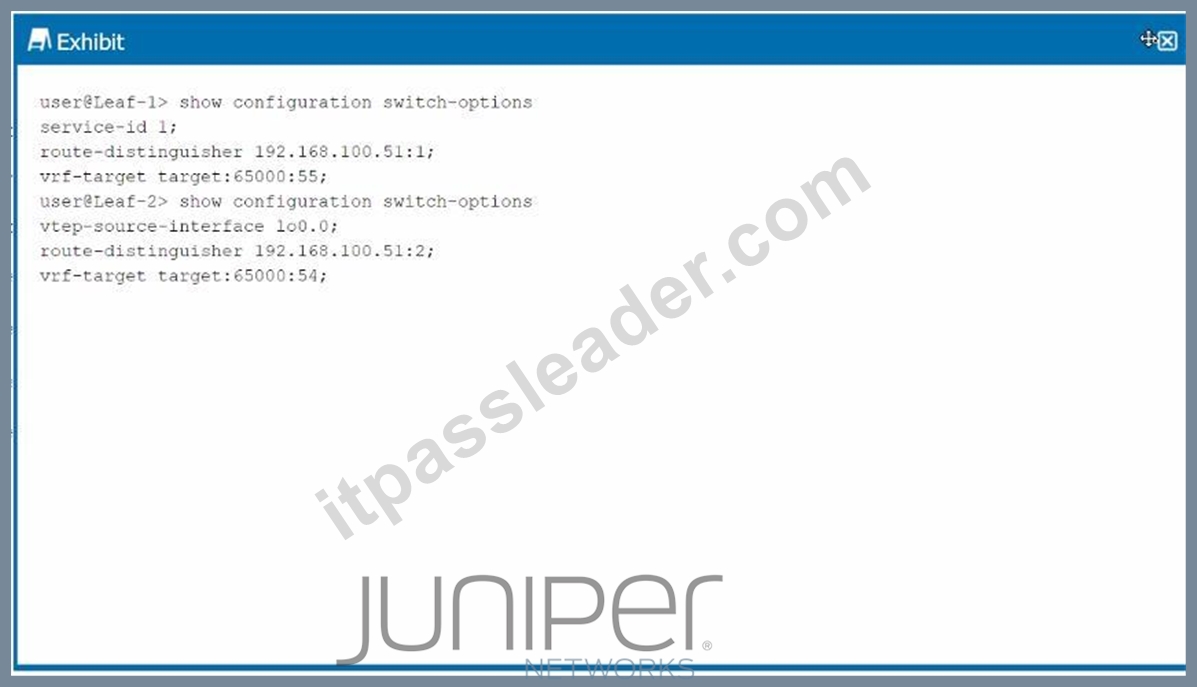

Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
- A. Configure the set switch-options service-id 1 parameter on Leaf-2.
- B. Configure the setswitch-options vtep-source-interface100. 0 parameter on Leaf-1.
- C. Configure the setswitch-options route-distinguisher 192.168.100.51:2 parameter on Leaf-1.
- D. Configure the set switch-options vrf-target target: 65000:55 parameter on Leaf-2.
Answer: A,D
Explanation:
* Review of the Exhibit:
* The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.
* Service-ID Consistency:
* The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.
* VRF Target Consistency:
* The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.
Conclusion:
* Option B:Correct-Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.
* Option D:Correct-The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.
NEW QUESTION # 35
Exhibit.
Referring tothe exhibit, which statement is correct?
- A. The MAC address is known but not reachable by the remote VTEP
- B. VNI 100 is not configured on the remote VTEP.
- C. The remote VTEP is not responding.
- D. The MAC address is unknown and not in the forwarding table of the remote VTEP.
Answer: D
Explanation:
* Analyzing the Exhibit Output:

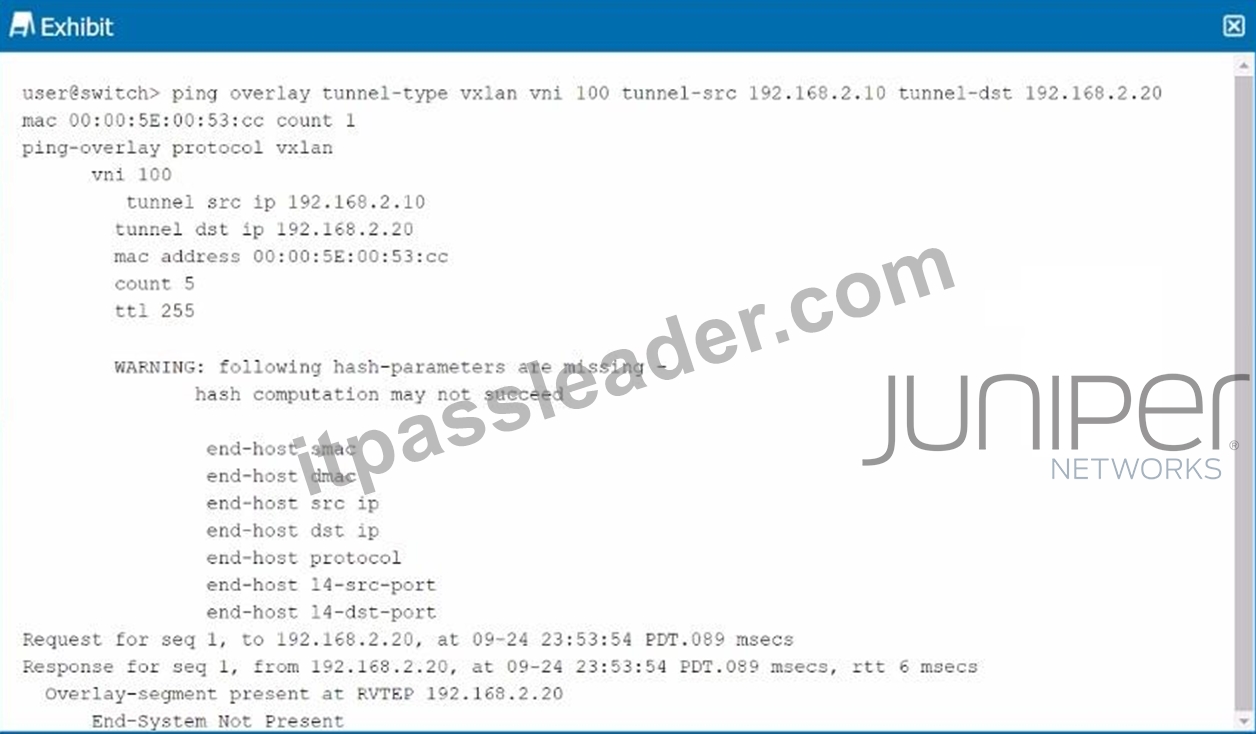

* The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present.
* Understanding the Response:
* The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.
Conclusion:
* Option B:Correct-The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the "End-System" is not present.
NEW QUESTION # 36
Exhibit.
Referring to the exhibit, when Host A sends an ARP request for Host B's IP address, which Junos feature does leaf1require to send an ARP response back to Host A without having to send a broadcast frame over the fabric?
- A. DAD
- B. proxy NDP
- C. proxy ARP
- D. GARP
Answer: C
Explanation:
* Scenario Overview:
* In the exhibit, Host A is trying to resolve Host B's IP address (10.10.1.2) through ARP (Address Resolution Protocol). Normally, an ARP request would be broadcasted over the network, and the host owning the IP address (Host B) would respond.
* Role of Proxy ARP:
* Option A:Proxy ARPallows a router or switch (in this case, leaf1) to respond to ARP requests on behalf of another host. Leaf1, knowing the MAC address of Host B through the EVPN MAC advertisement, can reply to Host A's ARP request directly without broadcasting the request across the entire network fabric. This feature reduces unnecessary traffic and increases network efficiency.
Conclusion:
* Option A:Correct-Proxy ARP enables leaf1 to respond to Host A's ARP request for Host B's IP without broadcasting over the IP fabric, thus providing the ARP response locally.
NEW QUESTION # 37
You are asked to build redundant gateways in your EVPN-VXLAN environment, but you must conserve address space because these gateways must span across seven PES. What should you implement on the PEs lo satisfy these requirements?
- A. Use IRB interfaces with the same IP address and different MAC addresses.
- B. Use IRB interfaces with the same IP and VGA.
- C. Use IRB interfaces with the same IP and MAC address.
- D. Use IRB interfaces with different IP addresses and the same VGA.
Answer: C
Explanation:
* Redundant Gateways in EVPN-VXLAN:
* In an EVPN-VXLAN environment, providing redundant gateway functionality typically involves the use of Anycast Gateway. This allows multiple PEs (Provider Edge devices) to use the same IP address and MAC address for the gateway, enabling seamless failover and redundancy without IP conflicts.
* Conserving Address Space:
* Using the same IP address across multiple PEs conserves address space because only one IP address is needed for the gateway function, regardless of the number of PEs. The shared MAC address ensures that ARP resolution and forwarding behavior are consistent across all the PEs.
Conclusion:
* Option C:Correct-Using IRB interfaces with the same IP and MAC address across all PEs satisfies the need for redundancy while conserving address space.
OptionsA, B,andDintroduce unnecessary complexity or do not fully utilize the efficient Anycast Gateway approach, which is best practice for conserving IP space and providing redundancy.
NEW QUESTION # 38
You are asked to deploy 100 QFX Series devices using ZTP Each OFX5120 requires a different configuration. In this scenario, what are two components that you would configure on the DHCP server?
(Choose two.)
- A. the IP address of the FTP server
- B. the management IP address for each OFX5120
- C. the MAC address of the FTP server
- D. the MAC address for each OFX5120
Answer: B,D
NEW QUESTION # 39
Which two statements are true about IP fabrics using unnumbered BGP? (Choose two.)
- A. Unnumbered BGP requires that family inet is configured on each interface.
- B. Unnumbered BGP requires that family inet6is configured on each interface.
- C. Unnumbered BGP peering automatically provisions IPv4 peering.
- D. Unnumbered BGP peering automatically provisions IPv6 peering.
Answer: A,C
Explanation:
* Understanding Unnumbered BGP:
* Unnumbered BGP (Border Gateway Protocol) allows BGP peering between routers without assigning specific IP addresses to the interfaces. Instead, it uses the loopback address or another router identifier for the BGP session, making IP address management more straightforward in large-scale networks.
* Family inet Configuration:
* Option C:The family inet configuration is required on each interface involved in unnumbered BGP peering to support IPv4 address families. This ensures that IPv4 peering sessions can be established between devices.
* Automatic IPv4 Peering:
* Option D:Unnumbered BGP peering automatically provisions IPv4 peering sessions. This simplifies the configuration by eliminating the need to manually assign and manage IP addresses for BGP peering.
Conclusion:
* Option C:Correct-Unnumbered BGP requires the family inet configuration for IPv4.
* Option D:Correct-Unnumbered BGP automatically provisions IPv4 peering, simplifying setup.
NEW QUESTION # 40
Exhibit.

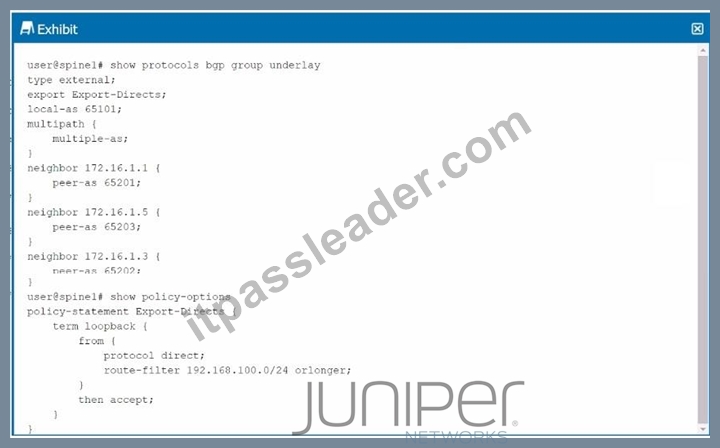

Referring to the exhibit, the spinel device has an underlay BGP group that is configured to peer with its neighbors' directly connected interfaces. Which two statements are true in this scenario? (Choose two.)
- A. The multihop statement is not required to establish the underlay BGP sessions.
- B. The multihop statement is required to establish the underlay BGP sessions.
- C. Load balancing for the underlay is configured correctly.
- D. Load balancing for the underlay is not configured correctly.
Answer: A,C
Explanation:
* Understanding BGP Configuration in the Exhibit:
* The exhibit shows a BGP configuration on spine1 with a group named underlay, configured to peer with directly connected interfaces of other devices in the network.
* Multipath multiple-as:This statement allows the router to install multiple paths in the routing table for routes learned from different ASes, facilitating load balancing.
* Key Statements:
* A. The multihop statement is not required to establish the underlay BGP sessions:In this case, the BGP peers are directly connected (as indicated by their neighbor IP addresses), so the multihop statement is unnecessary. Multihop is typically used when BGP peers are not directly connected and packets need to traverse multiple hops.
* D. Load balancing for the underlay is configured correctly:The multipath { multiple-as; } statement in the configuration enables load balancing across multiple paths from different autonomous systems, which is appropriate for underlay networks in data center fabrics.
* Incorrect Statements:
* C. The multihop statement is required to establish the underlay BGP sessions:This is incorrect because the peers are directly connected, making the multihop statement unnecessary.
* B. Load balancing for the underlay is not configured correctly:This is incorrect because the configuration includes the necessary multipath settings for load balancing.
Data Center References:
* BGP configurations in EVPN-VXLAN underlay networks are crucial for ensuring redundancy, load balancing, and efficient route propagation across the data center fabric.
NEW QUESTION # 41
A local VTEP has two ECMP paths to a remote VTEP
Which two statements are correctwhen load balancing is enabled in this scenario? (Choose two.)
- A. The source port in the UDP header is used to load balance VXLAN traffic.
- B. The destination port in the UDP header is used to load balance VXLAN traffic.
- C. The inner packet fields are used in the hash for load balancing.
- D. The inner packet fields are not used in the hash for load balancing.
Answer: A,C
Explanation:
* Load Balancing in VXLAN:
* VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.
* Key Load Balancing Fields:
* C. The source port in the UDP header is used to load balance VXLAN traffic:This is correct.
The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet's fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.
* D. The inner packet fields are used in the hash for load balancing:This is also correct. Fields such as the source and destination IP addresses, source and destination MACaddresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.
* Incorrect Statements:
* A. The inner packet fields are not used in the hash for load balancing:This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.
* B. The destination port in the UDP header is used to load balance VXLAN traffic:This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.
Data Center References:
* Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.
NEW QUESTION # 42
You want to provide a OCI that keeps each data center routing domain isolated, while also supporting translation of VNIs. Which DCI scheme allows these features?
- A. over the top (OTT) with proxy gateways
- B. over the top (OTT) with VNI translation enabled
- C. MPLS DCI label exchange
- D. VXLAN stitching
Answer: D
Explanation:
* Understanding DCI (Data Center Interconnect) Schemes:
* DCI schemes are used to connect multiple data centers, enabling seamless communication and resource sharing between them. The choice of DCI depends on the specific requirements, such as isolation, VNI translation, or routing domain separation.
* VXLAN Stitching:
* VXLAN stitching involves connecting multiple VXLAN segments, allowing VNIs (VXLAN Network Identifiers) from different segments to communicate with each other while maintaining separate routing domains.
* This approach is particularly effective for keeping routing domains isolated while supporting VNI translation, making it ideal for scenarios where you need to connect different data centers or networks without merging their control planes.
* Other Options:
* A. MPLS DCI label exchange:This option typically focuses on MPLS-based interconnections and does not inherently support VNI translation or isolation in the context of VXLAN.
* B. Over the top (OTT) with VNI translation enabled:This could support VNI translation but does not inherently ensure routing domain isolation.
* D. Over the top (OTT) with proxy gateways:This typically involves using external gateways for traffic routing and may not directly support VNI translation or isolation in the same way as VXLAN stitching.
Data Center References:
* VXLAN stitching is a powerful method in multi-data center environments, allowing for flexibility in connecting various VXLAN segments while preserving network isolation and supporting complex interconnect requirements.
NEW QUESTION # 43
Your organization is implementing EVPN-VXLAN and requires multiple overlapping VLAN-IDs. You decide to use a routing-instance type mac-vrf to satisfy this request.
Which two statements are correct in this scenario? (Choose two.)
- A. Host-facing interfaces must be configured using enterprise-style configuration.
- B. The routing-instance service type can be VLAN-based.
- C. Spine-facing interfaces must be configured using an enterprise-styleconfiguration.
- D. Host-facing interfaces must be configured using a service-provider style configuration.
Answer: B,D
Explanation:
* Understanding the Scenario:
* EVPN-VXLAN deployments often involve scenarios where multiple tenants or applications require overlapping VLAN IDs, which can be managed using the mac-vrf routing instance type.
This allows you to segregate traffic within the same VLAN ID across different tenants.
* Host-facing Interface Configuration:
* A. Host-facing interfaces must be configured using a service-provider style configuration:
This is correct. In mac-vrf configurations, host-facing interfaces (those connecting end devices) typically follow a service-provider style configuration, where each customer or tenant's traffic is isolated even if overlapping VLAN IDs are used.
* B. Host-facing interfaces must be configured using enterprise-style configuration:This is incorrect for mac-vrf instances because enterprise-style configurations are more common in simpler, less segmented networks.
* Routing Instance Service Type:
* D. The routing-instance service type can be VLAN-based:This is correct. The service type in mac-vrf can indeed be VLAN-based, which is particularly useful in scenarios where VLAN ID overlap is needed between different tenants or services.
Data Center References:
* The mac-vrf instance type is powerful for handling complex multi-tenant environments in EVPN- VXLAN, especially when dealing with overlapping VLAN IDs across different segments of the network.
NEW QUESTION # 44
You are asked to interconnect Iwo data centers using a method that provides EVPN Type 2 connectivity, is highly scalable, and limits VXLAN tunnels between border leafdevices. What will satisfy these requirements?
- A. over the top full-mesh interconnect
- B. IP VPN
- C. Type 2 seamless stitching
- D. EVPN Type 2 stretch
Answer: C
Explanation:
* Requirement Analysis:
* The scenario requires a solution to interconnect two data centers that supports EVPN Type 2 connectivity. The solution must be highly scalable and must minimize the number of VXLAN tunnels between border leaf devices.
* Understanding Type 2 Seamless Stitching:
* Option D:Type 2 seamless stitchingis a method used in EVPN to provide Layer 2 connectivity (such as MAC address mobility) across different VXLAN segments. It is scalable because it allows only necessary tunnels to be established between border leaf devices, reducing the overhead of maintaining a full mesh of VXLAN tunnels.
Conclusion:
* Option D:Correct-Type 2 seamless stitching satisfies the requirement by enabling scalable, efficient interconnection of two data centers with minimal VXLAN tunnels.
NEW QUESTION # 45
......
Juniper JN0-683 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
| Topic 5 |
|
Pass Guaranteed Quiz 2024 Realistic Verified Free Juniper: https://www.itpassleader.com/Juniper/JN0-683-dumps-pass-exam.html
JN0-683 Exam Questions - Real & Updated Questions PDF: https://drive.google.com/open?id=1wzPbCN2KvVCJ6XYZW3tGRJvfFnN0csSP
